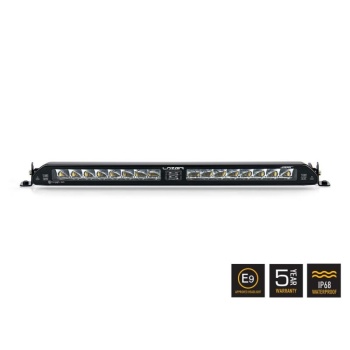

Kaugtuli Lazer Linear-18 Elite i-LBA 18000LM

ECE R112
E9 markeering
R markeering (täistuli)
Alumiinium korpus
Polükarbonaat klaas mis on kaetud spetsiaalse lakiga
IP67 tolmu- ja veekindlus
Pinge 9-32V
Kaal 1100gr
Valgustugevus 18000 LM (E-Mark = 5538 LM)
Võimsus 135w (E-Mark = 43w)
REF 17,5
Kaasas juhtmekomplekt
I-LBA – lähitulede abifunktioon, vaata täpsemalt videost


Peamised omadused ja eelised:

• 48 suure tõhususega LED-i: tagavad erakordse 18 000 töötlemata luumeni valgusvõimsuse, mis on peaaegu 50% rohkem kui varasematel mudelitel.
• Intelligentne lähitulede abirežiim: integreeritud fotoelektrilised andurid jälgivad teed rohkem kui 30 korda sekundis, kohandades valgusväljundit vastavalt ümbritsevatele tingimustele ja vastutulevale liiklusele.
• Kaugtuledelt lähituledele üleminek: säilitab suurepärase nähtavuse, vähendades samas vastutulevate sõidukite pimestamist.
• Uskumatu ulatus ja levik: valgustus ulatub kuni 522 meetrini (1 luks) ja katab 60 kraadi vasakule/paremale, pakkudes turvalisemat ja lõõgastavamat öist sõidukogemust.

Täiustatud Reageerimisvõime ja Usaldusväärsus:

• Fotoelektrilised andurid: jälgivad ja reageerivad teetingimustele, sh liiklusmärkidele, tänavavalgustusele ja muudele peegeldavatele objektidele.
• Automaatne kalibreerimine: kohaneb ilmastikutingimuste ja mustuse, tolmu või lume põhjustatud takistustega.
• Viivitusega valguse taasaktiveerimine: hoiab ära häiriva sisse-/väljalülitamise valgustuse taastamisel.

Optimeeritud Disain ja Vastupidavus:

• 5000K LED-värvitemperatuur ja 80CRI: tagavad terava ja loomuliku valguse, parandades nähtavust nii lähi- kui keskmaadest.
• Vaakummetalliseeritud optika: tagab ühtlase ja laia valguse leviku igas olukorras.
• IP68 veekindlus: kaitseb tolmu ja vee eest, säilitades töökindluse ka karmides tingimustes.
• Katkematu polükarbonaadist lääts: kõvalakiga kaitseb kriimustuste ja löökide eest.
• Kaitse ülepinge ja vastupidise polaarsuse eest: tagab stabiilse ja ohutu töö.

Paigaldus ja Sertifikaadid:

• Madal profiil: õhuke disain sobib diskreetseks paigaldamiseks.
• Vargusvastased külgmised kinnitusklambrid: hõlpsaks ja turvaliseks paigaldamiseks.
• Juhtmestiku komplekt: kaasasolev juhtmestik võimaldab kiiret ja mugavat paigaldust 4-kontaktiliste Deutsch pistikute abil.
• ECE Reg 112 ja Reg 10 sertifikaat: tunnustatud maanteedel kasutamiseks vastavalt rahvusvahelistele standarditele.

Revolutsiooniline E-Boost Tehnoloogia:

• Kahe väljundiga režiim: võimaldab suurendada valgusvõimsust maastikul või riikides, kus seadus seda lubab.
• Sekundaarne lüliti: võimaldab vajadusel intelligentse lähitulede abirežiimi välja lülitada.

Disainitud ja Toodetud Ühendkuningriigis:

Linear-18 Elite on loodud pakkuma kompromissitut kvaliteeti, jõudlust ja funktsionaalsust. Ühendkuningriigis projekteeritud ja valmistatud lamp pakub suurepärast valgustust, mis on kohandatud nii maanteedele kui ka maastikele.

Valige Linear-18 Elite – Ülim Öövalgustus Teie Sõidukile!

Combination of 48 high efficiency LEDs deliver exceptional lighting performance

Low Beam Assist mode provides superior short/mid-range visibility

Integrated photoelectric sensors detect oncoming traffic and obstacles so that light output responds to surroundings in Low Beam Assist mode

5000K LED colour temperature and 80CRI maximises sharpness and definition

Vacuum-metallised optics deliver wide spread of light

Reduced up/down spread of light suits even low mounting positions

Sleek, low profile design eases installation

Supplied with Single-Lamp Wiring Kit

Flexible mounting options – anti-theft side mounting brackets included

Electronic thermal management system optimises light output to preserve longevity of the LEDs

Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

CAE optimised heatsink offers improved thermal dynamics

Over voltage protected

Reverse polarity protected

‘Unbreakable’ polycarbonate lens with hardcoat lacquer

UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function (E-Boost function)

UNECE approved Reg 10

IP68 watertight

5 year warranty

Electrical connection made via 4-pin Deutsch connectors

Designed and manufactured in UK




A world first, utilising patent-pending technology, the Linear-18 Elite with Intelligent Low Beam Assist redefines the performance and functionality of auxiliary LED driving lights. A combination of the latest high-efficiency LEDs delivers a finely-tuned beam pattern, optimised for road use, that is simply unrivalled considering the lamps slimline proportions. Additionally, through the adoption of 2 photoelectric sensors embedded within the driving light, when the high beam light is turned off, the transition from high beam driving lights is significantly enhanced as the lamp maintains higher levels of illumination in zones where there is confirmed no oncoming vehicles or obstacles.

Incorporating an arrangement of 48 LEDs, each lamp produces an incredible 18,000 raw lumen, nearly 50% more than the market-leading Linear-18 Elite. The superior light output on the one hand delivers exceptional distance illumination with 1 lux at 522m, and on the other an incredible 60 degrees of left/right spread for our safest and most relaxing night drive experience. With the Intelligent Low Beam Assist mode activated, when transitioning from your high beam driving lights, the high intensity LEDs (delivering the distance illumination) are immediately deactivated when the standard high beams are turned off. Superior levels of visibility at the side of the road in the short/mid-range are maintained as the lamp monitors progress of oncoming traffic. At the appropriate point additional illumination at either side of the road is deactivated to avoid disturbance to oncoming vehicles. Once the vehicle has past (and after a short delay), the lamp automatically reactivates lighting at the side of the road, (assuming no additional vehicles or obstacles are subsequently detected ahead), or returns to full output if the driver subsequently reactivates the high beam driving light function (either manually or if part of any vehicle’s auto-headlights function).

Each sensor within the lamp monitors road conditions over 30x per second, for performance and functionality which feels safe and reliable. Continuous recalibration of these sensors ensures that the lamp responds to changing environmental conditions while in use; be that changing weather conditions, or the lamp getting obstructed by dirt, dust, snow etc. During the transition phase from high to low beam, the lamp also responds to other light emitting objects ahead of the driver including: medium/large road signs, street lighting, and other reflective obstacles. A carefully selected delay on the reactivation of lighting at the side of the road prevents any potentially distracting ‘flashing’ on/off of the lights that might otherwise occur in certain environments. The addition of a secondary switch, on the supplied wiring kit, allows for the Intelligent Low Beam Assist function to be disabled if specific circumstances demand.

The lamp is ECE certified to Regulation 112 as a high beam driving light, and through dual-output E-Boost technology the light output can be increased above ECE Reg112 limits when off-road, or where specific country-law allows. The Intelligent Low Beam Assist function is not an approved low beam driving light, but is patent-pending technology designed to smooth the transition from your high beam driving lights. The forementioned secondary switch allows deactivation of the function where the laws of the country specifically don’t allow use.

Like all Lazer products, the Linear-18 Elite with Low Beam Assist has been designed and manufactured in the UK to exacting standards, both in terms of performance, reliability, and appearance. Boasting a contemporary design, with refined highlights, this is a product that stands out and impresses on any vehicle, at anytime of day or night. Backed up by our comprehensive 5-year warranty, and Lifetime Lens Guarantee, this is a product you can have confidence will last for years in even the harshest environments.
